IPC-HDBW2441E-S-0280B

Name: IPC-HDBW2441E-S-0280B
Brand: Dahua
SKU: T1595
Price: 204.00 USD
Availability: OutOfStock

Ürün Kodu : IPC-HDBW2441E-S-0280B

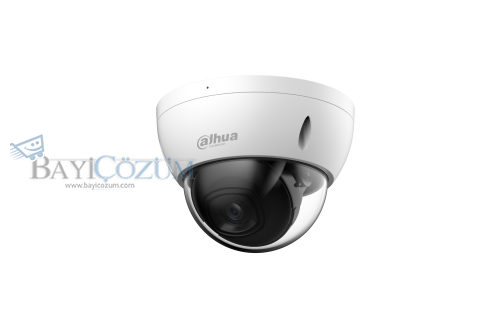

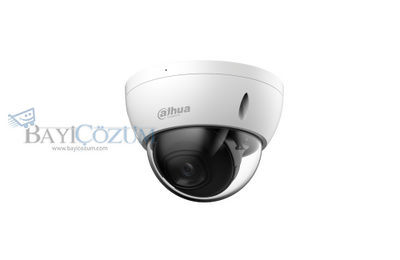

4 MP H.265+ IR Dome Sabit Lens WizSense Kamera (30m IR)
256G Mikro SD kart desteği
Ses Mic yerleşik
IP67 ve IK10 koruması
SMD +

Liste Fiyatı :
170,00 USD
Size Özel Fiyatı :
170,00 USD +KDV

Stok Adedi : 0

Stok Sorunuz Stoklara düşünce haber ver

Fiyat Alarmı Stoklara düşünce haber ver

Paylaş:

Ürün Özellikleri
Ödeme Seçenekleri
Tavsiye Et
Resimler
Döküman

Image Setting																		Brightness; Contrast; Sharpness; Saturation; Gamma
OSD Overlay																		Time; channel; location; custom
Record Mode																		Record manually; video detection record; schedule record Record priority: Manual > video detection > schedule
Micro SD Card (Max.)																		256 GB
Default																		Support one-click restore
User Management																		Up to 20
Security																		User name and password; MAC address; HTTPS; IEEE802.1x; network access control
Low Illuminance Level																		Starlight
IVS (Perimeter Protection)																		Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD																		SMD Plus
Smart Search																		Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video Compression																		H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec																		Smart H.265+; Smart H.264+
Video Frame Rate																		Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability																		2 streams
Resolution																		4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control																		CBR/VBR
Video Bit Rate																		H.264: 32 kbps–6144 kbps; H.265: 32 kbps–6144 kbps
Day/Night																		Auto(ICR)/Color/B/W
BLC																		Yes
HLC																		Yes
WDR																		120 dB
White Balance																		Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control																		Manual;Auto
Noise Reduction																		3D NR
Motion Detection																		OFF/ON (4 areas, rectangular)
Default Bit Rate with Default Resolution																		2048 kbps (2560 × 1440)
Region of Interest (RoI)																		Yes (4 areas)
Image Rotation																		0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror																		Yes
Privacy Masking																		4 areas
Language																		English; TradChinese; Italian; Spanish; Japanese; Russian; French; German; Portuguese; Turkish; Polish; Romanian; Hungarian; Korean; Czech; Dutch; Ukrainian; Vietnamese; Arabic; Spanish (Europe); Hebrew; Thai; Bahasa Indonesia
Alarm Event																		No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception;
Network Port																		RJ-45 (10/100 Base-T)
SDK and API																		Yes
Network Protocol																		IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability																		ONVIF (Profile S & Profile T & Profile G); CGI
User/Host																		6 (Total bandwidth: 36 M)
Storage																		FTP;SFTP; Micro SD card (support max. 256 GB)
Browser																		IE; Chrome; Firefox
Management Software																		DSS;DMSS
Mobile Client																		iOS;Android
Cyber Security																		Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Operating Temperature																		–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity																		≤95%
Protection																		IP67; IK10
Lens Type																		Fixed-focal
Lens Mount																		M12
Focal Length																		2.8 mm
Max. Aperture																		F1.6
Field of View																		H: 102°; V: 54°; D: 121°
Iris Control																		Fixed
Close Focus Distance																		1.1 m (3.61 ft)
DORI Distance																		D: 63.6 m; O: 25.4 m; R: 12.7 m; I: 6.4 m (D: 208.66 ft; O: 83.33 ft; R: 41.67 ft; I: 21.00 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Appearance																		Dome
Image Sensor																		1/2.9" CMOS
Pixel																		4 MP
Max. Resolution																		2688 (H) × 1520 (V)
ROM																		128 MB
RAM																		128 MB
Scanning System																		Progressive
Electronic Shutter Speed																		Auto/Manual 1/3 s–1/100,000 s
Min. Illumination																		0.006 lux@F1.6 (Color, 30 IRE); 0.0006 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio																		＞56 dB
Illumination Distance																		Up to 30 m (98.43 ft) (IR LED)
Illuminator On/Off Control																		Auto;Manual
Illuminator Number																		3 (IR LED)
Angle Adjustment																		Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355°
Built-in Battery																		Support SUPERCAP 0.08 F
Built-in MIC																		Yes
Audio Compression																		G.711a; G.711Mu; PCM; G.726
Audio Sampling																		8 kHz; 16 kHz
Casing Material																		Metal
Product Dimensions																		81.0 mm × Φ109.9 mm (3.19"× Φ4.33")
Packaging Dimensions																		138 mm × 137 mm × 115 mm (5.43" × 5.39" × 4.53") (L × W × H)
Net Weight																		0.34 kg (0.75 lb)
Gross Weight																		0.49 kg (1.08 lb)
Installation																		Ceiling mount; wall mount; vertical pole mount
Power Adapter																		Optional
Lens																		Included
Certifications																		CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Operating Voltage																		12 VDC (±30%); PoE (802.3af)
Power Supply																		12 VDC; PoE (802.3af)
Power Consumption																		Basic: 2.3 W (12 VDC); 2.9 W (PoE) Max. (ICR + H.265 + WDR + max. Illumination + intelligence on): 5 W (12 VDC); 6 W (PoE)
