IPC-HDBW3541R-ZAS-27135

Name: IPC-HDBW3541R-ZAS-27135
Brand: Dahua
SKU: 1070
Price: 474.00 USD
Availability: OutOfStock

Ürün Kodu : IPC-HDBW3541R-ZAS-27135

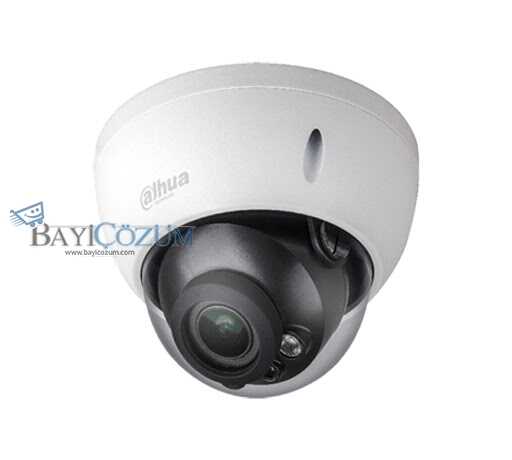

5 MP H.265+ Değişken Odaklı Dome WizSense Ağ Kameras

IR LED aydınlatma mesafesi 40 m'dir.
WDR, 3D NR, HLC, BLC, dijital filigranlama,
AI Analizzler ve İzinsiz giriş, tetikleme
Alarm: 1 giriş, 1 çıkış, Audio 1giriş /1çıkış, 256G SD kart
Ses: MIC yerleşik, IP67, IK10, SMD Plus

Liste Fiyatı :
395,00 USD
Size Özel Fiyatı :
395,00 USD +KDV

Stok Adedi : 0

Stok Sorunuz Stoklara düşünce haber ver

Fiyat Alarmı Stoklara düşünce haber ver

Paylaş:

Ürün Özellikleri
Ödeme Seçenekleri
Tavsiye Et
Resimler
Döküman

IVS (Perimeter Protection)																		Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD																		SMD 4.0
AI SSA																		Yes
Quick Pick																		With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search																		Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Audio Input																		1 channel (3.5mm JACK port)
Audio Output																		1 channel (3.5mm JACK port)
Alarm Input																		1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output																		1 channel out: wet contact, 300 mA 12 VDC
Certifications																		CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Image Setting																		Brightness; Contrast; Sharpness; Saturation; Gamma
OSD Overlay																		Privacy masking; channel title; time title; location; font properties; picture overlay; custom title
Record Mode																		Manual record; video detection record; schedule record; alarm record Record priority: Manual > external alarm > video detection > schedule
Micro SD Card (Max.)																		256 GB
Default																		Support one-click restore
User Management																		Up to 20
Security																		User name and password; MAC address; HTTPS; IEEE802.1x; network access control
Low Illuminance Level																		Starlight
Video Compression																		H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec																		Smart H.265+;Smart H.264+
AI Coding																		AI H.265; AI H.264
Video Frame Rate																		Main stream: 2880 × 1620@(1–20 fps)/2960 × 1668@(1–20 fps)/2688 × 1520@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability																		3 streams
Resolution																		5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control																		CBR/VBR
Video Bit Rate																		H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Day/Night																		Auto(ICR)/Color/B/W
BLC																		Yes
HLC																		Yes
WDR																		120 dB
Scene Self-adaptation (SSA)																		Yes
White Balance																		Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control																		Manual;Auto
Noise Reduction																		3D NR
Motion Detection																		OFF/ON (4 areas, rectangular)
Default Bit Rate with Default Resolution																		2304 kbps (2880 × 1620)
Region of Interest (RoI)																		Yes (4 areas)
Image Stabilization																		Electronic Image Stabilization (EIS)
Smart Illumination																		Yes
Defog																		Yes
Image Rotation																		0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror																		Yes
Privacy Masking																		4 areas
Language																		English; Italian; Spanish; Japanese; Russian; French; German; Portuguese; Turkish; Polish; Romanian; Hungarian; Korean; Czech; Dutch; Ukrainian; Vietnamese; Arabic; European Spanish; Hebrew; Thai; Indonesian
Alarm Event																		No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm;SMD; security exception
Network Port																		RJ-45 (10/100 Base-T)
SDK and API																		Yes
Network Protocol																		IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability																		ONVIF (Profile S & Profile G & Profile T); CGI; P2P
User/Host																		20 (Total bandwidth: 64 M)
Storage																		FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser																		IE: IE 11 Chrome Firefox
Management Software																		Smart PSS;DSS;DMSS
Mobile Client																		iOS;Android
Cyber Security																		Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Operating Temperature																		–30 ℃ to +60 ℃ (–22 °F to +140 °F)
Operating Humidity																		≤ 95%
Protection																		IP67; IK10
Lens Type																		Motorized vari-focal
Lens Mount																		φ14
Focal Length																		2.7 mm–13.5 mm
Max. Aperture																		F1.5
Field of View																		H: 114°–32°; V: 58°–17°; D: 138°–36°
Iris Control																		Fixed
Close Focus Distance																		0.8 m (2.62 ft)
DORI Distance																		W: D: 64.0 m; O: 25.6 m; R: 12.8 m; I: 6.4 m (D: 209.97 ft; O: 83.99 ft; R: 41.99 ft; I: 21.00 ft) T: D: 210.0 m; O: 84.0 m; R: 42.0 m; I: 21.0 m (D: 688.98 ft; O: 275.59 ft; R: 137.80 ft; I: 68.90 ft)
Appearance																		Vandal-proof Dome
Image Sensor																		1/2.7" CMOS
Pixel																		5 MP
Max. Resolution																		2960 (H) × 1668 (V)
ROM																		128 MB
RAM																		512 MB
Scanning System																		Progressive
Electronic Shutter Speed																		Auto/Manual 1/3 s–1/100,000 s
Min. Illumination																		0.005 lux@F1.5 (Color, 30 IRE); 0.0005 lux@F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio																		＞56 dB
Illumination Distance																		Up to 40 m (131.23 ft) (IR LED)
Illuminator On/Off Control																		Auto;Manual
Illuminator Number																		3 (IR LED)
Angle Adjustment																		Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355°
Built-in Battery																		Support 1 mAH rechargeable button lithium battery
Built-in MIC																		Yes
Audio Compression																		G.711a; G.711Mu; PCM; G.726; G.723
Audio Sampling																		8 kHz; 16 kHz; 32 kHz; 48 kHz; 64 kHz
Casing Material																		Metal
Product Dimensions																		94 mm × Φ122 mm (3.7" × Φ4.8")
Packaging Dimensions																		187 mm × 186 mm × 162 mm (7.4"×7.3"×6.4") (L × W × H)
Net Weight																		713 g (1.6 lb)
Gross Weight																		986 g (2.2 lb)
Installation																		Ceiling mount; junction mount
Power Adapter																		Optional
Lens																		Included
Operating Voltage																		12 VDC (±30%) independent power port; PoE (802.3af)
Power Supply																		12 VDC; PoE (802.3af)
Power Consumption																		Basic: 3.1 W (12 VDC); 3.8 W (PoE) Max. (WDR+IR intensity+Intelligence on): 6.4 W (12 VDC); 7.7 W (PoE)
