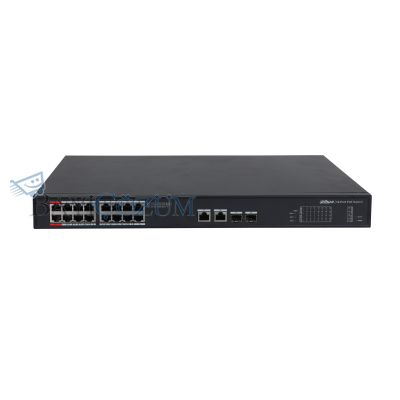

PFS3220-16GT-240

Certification

Layer

Layer 2

Managed

No

Switching Capacity

52 Gbps

Packet Forwarding Rate

29.76 Mpps

Packet Buffer Memory

4 Mbit

MAC Table Size

8K

Standards Compliance

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

Hardware Feature

Standard Power Supply

Yes

PoE

Yes

Ethernet Port

16

Optical Port

2

Ethernet Port Rate

1 Gbps

Optical Port Rate

1 Gbps

Number of Bussiness Card Slots

Port 1–16: 16 × RJ45 10/100/1000 M (PoE)
Port 17–18: 2 × RJ45 10/100/1000 M (uplink)
Port 19–20: 2 × SFP 1000 M (uplink)

Power Supply

100V AC–240V AC

Operating Temperature

–10°C to 55°C (14°F to 131°F)

Operating Humidity

10%–90%

Storage Humidity

5%–95%

Power Consumption

Idling: 7W
Full load: 240W

PoE

PoE Standard

IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt

PoE Budget

Port 1–2≤90W, Port 3–16≤30W, total≤240W

PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

General

ESD

Air discharge: 8kV
Contact discharge: 6kV

Thunderproof

Common mode: 4kV
Differential mode: 2kV

Dimensions

440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73")

Packaging Dimensions

527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33")
