YeniÜrün
Dahua

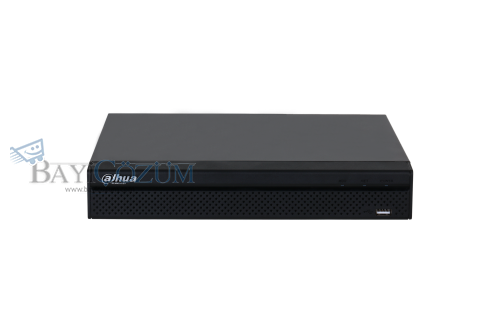

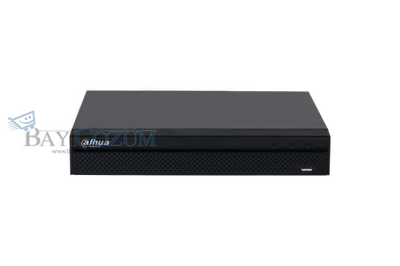

DHI-NVR2104HS-4KS3

Ürün Kodu : DHI-NVR2104HS-4KS3

Akıllı H.265+, H.265, Akıllı H.264+, H.264 ve MJPEG .
Maksimum kod çözme kapasitesi: 6 × 1080p@30 fps.
Maksimum 80/80/60 Mbps gelen/kayıt/giden bant genişliği.
Çözünürlüğü 12 MP'ye kadar olan IP kameraları destekler.
AI by Recorder 4 kanallı SMD Plus'ı destekler.
AI by Camera, çevre korumasını ve SMD Plus'ı destekler.
Liste Fiyatı :
135,00 USD
Size Özel Fiyatı :
135,00 USD +KDV
Stok Adedi :
  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Tavsiye Et
  • Resimler
  • Döküman
  • Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
    Audio Compression G.711a; G.711u; PCM; G726;
    SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
    SMD Plus by Camera 4 channels
    Playback (SMD Plus) 1. Search conditions: Search for image by channels, type (human, vehicle), and start/end time 2. Functions: Supports recording playback (10 seconds before/after the event) and exporting search results of videos 3. Database capacity: 100,000
    Access Channel 4 channels
    Network Bandwidth 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
    Resolution 12 MP;8 MP;5 MP;4 MP;3 MP;1080p;720p;D1
    Decoding Capability AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps
    Video Output 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
    Multi-screen Display 1/4
    Third-party Camera Access ONVIF
    Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
    Mobile Phone Access iOS; Android
    Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
    Browser Chrome; IE; Safari; Edge; Firefox
    General Alarm Motion detection; camera external alarm; PIR alarm
    Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
    Intelligent Alarm Perimeter protection; SMD Plus
    Alarm Linkage Recording; snapshot; buzzer; log; preset; email; tour
    Audio Input 1-channel RCA
    Audio Output 1-channel RCA
    Alarm Input NA (2 channels are optional)
    Alarm Output NA (1-channel 12 V 1 A output is optional)
    Disk Interface 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
    USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
    HDMI 1
    VGA 1
    Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
    AI by Recorder SMD Plus
    AI by Camera Perimeter protection; SMD Plus
    Power Supply 12 VDC, 1.5 A
    Power Consumption <10 W (without HDD)
    Net Weight 0.85 kg (1.87 lb)
    Gross Weight 1.39 kg (3.06 lb)
    Product Dimensions 260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
    Packaging Dimensions 334.0 mm × 89.0 mm × 314.0 mm(13.15" × 3.50" × 12.36")(W × D × H)
    Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
    Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
    Operating Humidity 10%–93% (RH), non-condensing
    Storage Humidity 30%–85% (RH), non-condensing
    Operating Altitude 3,000 m (9,842.52 ft)
    Installation Rack or desktop
    Certifications CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
    IVS 1. AI by Camera: Supports 4 channels 2. AI by Recorder: No 3. Supports abandoned/missing object, parking detection, people gathering, fast moving, loitering detection, fence-crossing 4. Detection rule: Supports recording linkage, capture, audio, buzzer, and log
    Playback (general IVS analytics) 1. Search conditions: Search for image by channels, type, and start/end time 2. Functions: Supports recording playback (10 seconds before/after the event), exporting search results to excel, video and image format 3. Database capacity: 300,000 entries
    Main Processor Industrial-grade processor
    Operating System Embedded Linux
    Operating Interface Web, Local GUI
    IVS (Perimeter Protection) 1. AI by Camera: Yes 2. AI by Recorder: No Supports setting up to 10 intrusion and tripwire rules; record linkage, PTZ linkage, snapshot (panoramic), audio, buzzer, and log
    Perimeter Performance of AI by Camera (Number of Channels) 4 channels
    Playback (Perimeter Protection) 1. Search conditions: Search for image by channel, time, event type, and target type 2. Function: Supports recording playback (10 seconds before/after the event), and exporting search results to Excel, video and image format 3. Snapshot database capacity: 300,000 entries
    Multi-channel Playback Up to 4 channels
    Record Mode General, motion detection; intelligent; alarm
    Backup Method USB device and network
    Playback Mode Instant playback; general playback; event playback; tag playback; smart playback
  • pdf-icon.png (16 KB)Teknik Özellikler
