IPC-HFW1230T-ZS-2812-S5

Name: IPC-HFW1230T-ZS-2812-S5
Brand: Dahua
SKU: T1340
Price: 219.60 USD
Availability: InStock

Ürün Kodu : IPC-HFW1230T-ZS-2812-S5

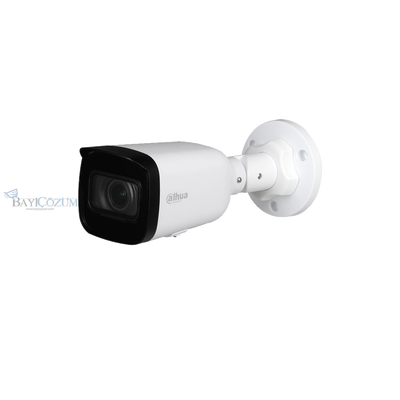

2MP Entry IR Vari-focal Bullet Netwok Kamera

Liste Fiyatı :
183,00 USD
Size Özel Fiyatı :
183,00 USD +KDV

Stok Adedi :

Sepete Ekle

Fiyat Alarmı

Paylaş:

Ürün Özellikleri
Ödeme Seçenekleri
Tavsiye Et
Resimler
Döküman

FunctionVideoAlarmNetworkEnvironmentLensCameraStructureCertificationPower

Image Setting																		Brightness; Contrast; Sharpness; Saturation; Gamma
OSD Overlay																		Time; channel; location
Record Mode																		Manual record; video detection record; schedule record; alarm record Record priority: Manual > alarm record > video detection > schedule
Micro SD Card (Max.)																		256 GB
Default																		Support one-click restore
User Management																		Up to 20
Security																		Username and password; MAC address; HTTPS; IEEE802.1x; network access control
Video Compression																		H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec																		Smart H.265+; Smart H.264+
Video Frame Rate																		Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability																		2 streams
Resolution																		1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control																		CBR/VBR
Video Bit Rate																		H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Day/Night																		Auto(ICR)/Color/B/W
BLC																		Yes
HLC																		Yes
WDR																		DWDR
White Balance																		Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control																		Manual;Auto
Noise Reduction																		3D NR
Motion Detection																		OFF/ON (4 areas, rectangular)
Default Bit Rate with Default Resolution																		4096 kbps (1080p)
Region of Interest (RoI)																		Yes (4 areas)
Smart Illumination																		Yes
Image Rotation																		0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror																		Yes
Privacy Masking																		4 areas
Language																		English; Spanish; Russian
Alarm Event																		No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; security exception; defocus detection
Network Port																		RJ-45 (10/100 Base-T)
SDK and API																		Yes
Network Protocol																		IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS
Interoperability																		ONVIF (Profile S & Profile T); CGI; P2P
User/Host																		6 (Total bandwidth: 36 M)
Storage																		FTP; Micro SD card (support max. 256 G)
Browser																		IE; Chrome; Firefox
Management Software																		Smart PSS;DSS;DMSS
Mobile Client																		iOS;Android
Cyber Security																		Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade
Operating Temperature																		–30 °C to +60 °C (–22 °F to 140 °F)
Operating Humidity																		≤ 95%
Protection																		IP67
Lens Type																		Motorized vari-focal
Lens Mount																		φ14
Focal Length																		2.8 mm–12 mm
Max. Aperture																		F1.7
Field of View																		H: 101°–33.5°; V: 52.5°–19°; D: 125°–38.5°
Iris Control																		Fixed
Close Focus Distance																		0.8 m (2.62 ft)
DORI Distance																		W: D: 48 m; O: 19 m; R: 10 m; I: 5 m (D: 157.48 ft; O: 62.34 ft; R: 32.81 ft; I: 16.40 ft) T: D: 131 m; O: 52 m; R: 26 m; I: 13 m (D: 429.79 ft; O: 170.60 ft; R: 85.30 ft; I: 42.65 ft)
Appearance																		Bullet
Image Sensor																		1/2.8" CMOS
Pixel																		2MP
Max. Resolution																		1920 (H) × 1080 (V)
ROM																		16 MB
RAM																		128 MB
Scanning System																		Progressive
Electronic Shutter Speed																		Auto/Manual 1/3 s–1/100,000 s
Min. Illumination																		0.008 lux@F1.7 (Color, 30 IRE); 0.0008 lux@F1.7 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio																		＞56 dB
Illumination Distance																		Up to 50 m (164.04 ft) (IR LED)
Illuminator On/Off Control																		Auto;Manual
Illuminator Number																		2 (IR LED)
Angle Adjustment																		Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Casing Material																		Metal
Product Dimensions																		244.1 mm × Φ90.4 mm (9.61" × Φ3.56")
Packaging Dimensions																		307 mm × 155 mm × 143 mm (12.09" × 6.10" × 5.63") (L × W × H)
Net Weight																		0.86 kg (1.90 lb)
Gross Weight																		1.12 kg (2.47 lb)
Installation																		Wall mount; Ceiling mount; Pole mount;
Certifications																		CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B
Operating Voltage																		12 V DC (±30%); PoE (802.3af)
Power Supply																		12 V DC; PoE
Power Consumption																		Basic: 1.8 W (12 V DC); 2.3 W (PoE) Max. (H.265+ICR+IR intensity): 4.3 W (12 V DC); 5.5 W (PoE)
