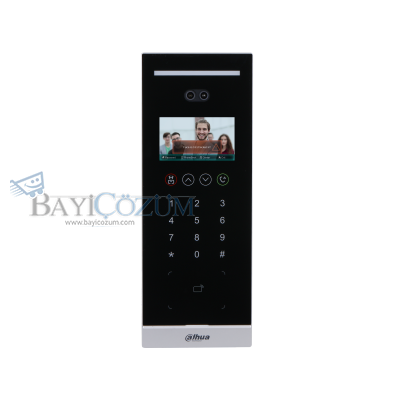

DHI-VTO6531H
4,3 inç IPS ekran; ekran çözünürlüğü 800×480
2MP CMOS; gerçek WDR
Yüz-kamera mesafesi: 0,3 m–2 m; insan boyu: 1,1 m–2,4 m (lens-zemin mesafesi: 1,4 m)
Dokunmatik düğme; IP65
Çalışma sıcaklığı: -30°C ila +60°C
Otomatik ışık aydınlatması ışık kirliliğini azaltır
Çoklu kilit açma modları: Şifre kilidi açma, IC kart kilidi açma, uzaktan kilit açma ve yüz kilidi açma
20.000 kullanıcı, 10.000 yüz görüntüsü ve 10.000 kartı destekler · Yüz tanıma hızı: kişi başına 0,2 saniye
Canlılık algılamayı destekler
Tam çift yönlü desteği; yönetim platformu ve APP aracılığıyla sesli arama
SIP sunucusunu destekler
Tehdit alarmı, kurcalama alarmı
562,00 USD
Size Özel Fiyatı :
562,00 USD +KDV
- Ürün Özellikleri
- Ödeme Seçenekleri
- Tavsiye Et
- Resimler
- Döküman
-
System
Main Processor
Embedded processor
Operating System
Embedded Linux operating system
Button Type
Touch button
Network Protocol
SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP
ROM
4GB
RAM
1GB
Basic
Display Screen
4.3 inch IPS screen
Resolution
800×480
Camera
1/2.7" 2MP CMOS high definition, low illumination, white illuminator and IR illuminator
Field of View
Horizontal: 87.42°; vertical: 46.48 °;
diagonal: 104.13°
Focal Length
4.0 mm
Aperture
F1.6
WDR
120dB
Noise Reduction
3D noise reduction
Video Compression
H.264
Video Resolution
Main Stream: 720p, sub stream: 1080P
Frame Rate
Main Stream (720P@25fps), sub stream (1080P@25fps)
Main Stream (720P@30fps), sub stream (1080P@30fps)Video Bit Rate
256Kbps–2048Kbps
Light Compensation
Auto white light Auto IR light
Day/Night
ICR auto switch
Audio Compression
G.711u
Audio Input
1
Audio Output
Built-in speaker
Audio Mode
Full duplex communication
Audio Enhancement
Echo suppression and cancellation/digital noise reduction
Audio Bit Rate
16KHz, 16Bit
Function
Communication Mode
Full digital
Unlock Mode
Card/Remote/Password/Face unlock
Card Reading Type
IC card
Motion Detection
Video motion detection
Auto Snapshot
Yes
Leave Videos or Text Messages
Yes
Web Configuration
Yes
Performance
Card Reading Distance
1cm–5cm
Issue Card Locally
Yes
Face Recognition Height Range
1.1m–2.4m is recommended
Face Recognition Distance
0.3m–2cm
Face Recognition Configuration
Recognition threshold Facial profile angle
Face Verification Accuracy
99.5%
Face Recognition Time
0.2s
Casing Material
PC+ABS
Capacity
Card
10,000
Face Image
10,000
Port
RS-485
1
Wiegand
1 input port, 1 output port
Electric lock
1
Alarm Input
2 (Digital quantity)
Alarm Output
2 (Digital quantity)
Power Output
1 12V/100mA
Exit Button
1
Door Status Detection
1
Lock Control
1, normally open by default
Network
1 RJ-45 10Mbps/100Mbps self-adaptive
Alarm
Tamper
Yes
General
Unlock Password Mode
User password/public password/duress password
Color
Silver
Power Supply Mode
DC 12V2A
Power Supply
Optional
Installation
Surface mount and Flush mount
-
