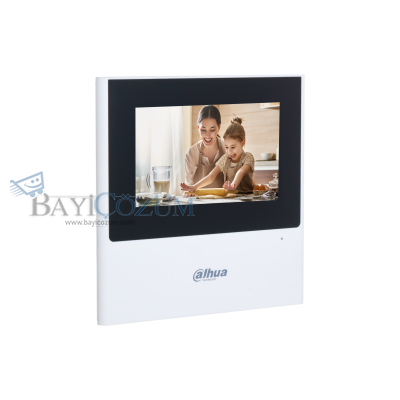

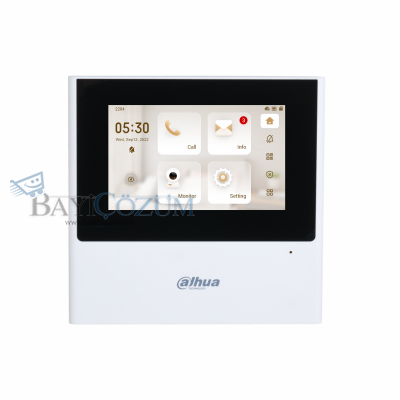

DHI-VTH2611L-WP

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Network Protocol

UDP; TCP; IPv4; RTSP; SIP; RTP

Basic

Screen Type

Capacitive Touchscreen

Display Screen

4.3" TFT display

Screen Resolution

480 (H) × 272 (V)

Audio Compression

G.711A; G.711U; PCM

Audio Input

1 channel

Audio Output

1 built-in speaker and 1 receiver speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz, 16 bit

Function

Communication Mode

Full digital

Information Release

Text messages can be received and viewed on the indoor monitor

Elevator Control

You can control the elevator through the indoor monitor

DND Mode

Do not disturb period can be set.

Number of Extensions

Apartment: 4; Villa: 9

Wi-Fi

Yes

Wireless Standard

IEEE802.11b; 802.11g; 802.11n

Wireless Frequency Range

2.4 GHz

Port

Alarm Input

4 channels

Alarm Output

1

Network Port

1 × RJ-45 10/100 M self-adaptive Ethernet port

Performance

Casing Material

ABS

General

Appearance Color

White

Power Supply

12 VDC, 1 A; standard PoE (IEEE 802.3af/at)

Power Adapter

Not included

Installation

Surface mount

Accessory

Surface mount bracket, alarm ribbon cable, and power-supply pins are provided

Product Dimensions

136.0 mm × 140.0 mm × 25.5 mm (5.35" × 5.51" × 1.00")

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–95% (RH), non-condensing

Power Consumption

≤4 W (standby); ≤6 W (working)

Gross Weight

0.21 kg (0.46 lb)
