Dahua

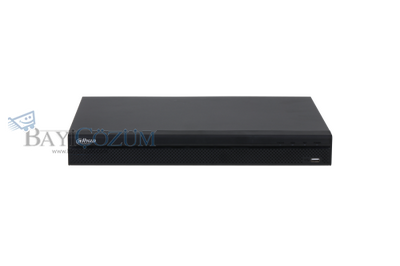

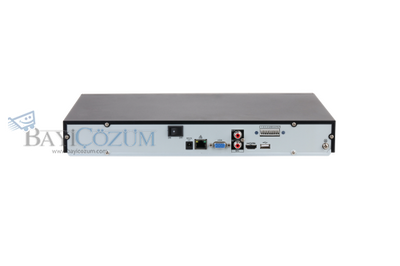

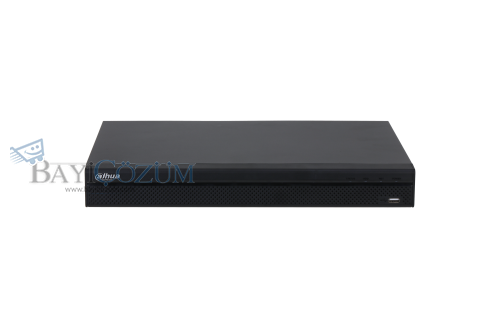

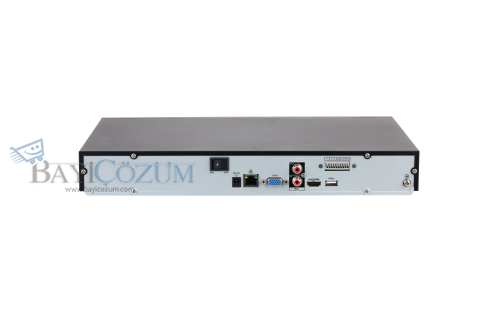

DHI-NVR4232-4KS3

Ürün Kodu : DHI-NVR4232-4KS3

32 Channel 1U 2HDDs Network Video Recorder


160/128/60 Mbps gelen/kayıt/giden bant genişliği.
Çözünürlüğü 12 MP'ye kadar olan IP kameraları destekler.
AI by Recorder 2 kanallı SMD Plus'ı destekler.
AI by Camera, yüz algılama ve tanıma, çevre koruma,
SMD Plus, kişi sayma, stereo analiz ve ısı haritasını destekler.
Liste Fiyatı :
400,00 USD
Size Özel Fiyatı :
400,00 USD +KDV
Stok Adedi : 0
Stok Sorunuz Stoklara düşünce haber ver
  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Tavsiye Et
  • Resimler
  • Döküman
  • Face Detection 1. AI by Camera: Yes 2. AI by Recorder: No Supports setting detection regions, record linkage, snapshot (panoramic), local external alarm output, IPC external alarm output, access controller, audio, buzzer, and log
    Face Attributes Gender; age group; glasses; expressions; face mask; beard
    Face Detection Performance of AI by Camera (Number of Channels) 6 channels
    Live (Face Detection) 1. Rule box and object detection box : Configure rule box and object detection box 2. Intelligent panel: Displays event type, time, and face snapshot 3. Facetotal: calculates the number of face snapshots taken in a 24 hour period. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event) and exporting 4. Panel filtering: Filter by panel type and attribute
    Playback (Face Detection) 1. Search conditions: Search for image by channel, time, and face attribute 2. Functions: Supports recording playback (10 seconds before/after the event), and exporting search results to Excel, video and image format. 3. Database capacity: 300,000 entries
    SMD Plus by Recorder 2 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
    SMD Plus by Camera 6 channels
    Live (SMD Plus) Tracking box: Configure tracking box
    Playback (SMD Plus) 1. Search conditions: Search for image by channels, type (human, vehicle), and start/end time 2. Functions: Supports recording playback (10 seconds before/after the event) and exporting search results of videos 3. Database capacity: 100,000
    Audio Input 1-channel RCA
    Audio Output 1-channel RCA
    Alarm Input 4 channels
    Alarm Output 2 channels (1-channel 12 V 1 A output）
    Disk Interface 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
    USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
    HDMI 1
    VGA 1
    Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
    AI by Recorder SMD Plus
    AI by Camera Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
    IVS 1. AI by Camera: Supports 6 channels 2. AI by Recorder: No 3. Supports abandoned/missing object, parking detection, people gathering, fast moving, loitering detection, fence-crossing 4. Detection rule: Supports recording linkage, capture, local alarm output, audio, buzzer, and log
    Live (general IVS analytics) 1. Rule box and object detection: Configure rule box and object detection box.
    Playback (general IVS analytics) 1. Search conditions: Search for image by channels, type, and start/end time 2. Functions: Supports recording playback (10 seconds before/after the event), exporting search results to excel, video and image format 3. Database capacity: 300,000 entries
    Main Processor Industrial-grade processor
    Operating System Embedded Linux
    Operating Interface Web, Local GUI
    Face Recognition 1. Recognition mode: FD (by camera) + FR (by camera) 2. AI by Camera: Yes 3. AI by Recorder: No
    Face Recognition Performance of AI by Camera (Number of Channels) 6 channels
    Live (Face Recognition) 1. Detection box: Can be enabled and disabled; the rule box color can be changed according to face recognition results 2. Intelligent panel: Displays event type, time, face snapshot, similarity and database name 3. Facetotal: calculates the number of face snapshots taken in a 24 hour period. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event) and exporting 4. Panel filtering: Filter by panel type and attribute
    Playback (Face Recognition) 1. Search condition: Search for images by channel, time, face attribute, similarity and recognition mode (stranger/normal mode) 2. Functions: Supports recording playback (10 seconds before/after the event), and exporting search results to Excel, video and image format 3. Database capacity: 300,000 entries
    Video Compression Smart H.265+; H.265; Smart H.264+; H.264
    Audio Compression G.711a; G.711u; PCM; G726
    Disk Group Yes
    Access Channel 32 channels
    Network Bandwidth AI disabled: 160 Mbps incoming, 128 Mbps recording and 60 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
    Resolution 12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
    Decoding Capability AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps
    Video Output 1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
    Multi-screen Display AI disabled: Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 AI enabled: Main Screen: 1/4/8/9/16, Sub Screen: 1/4/8/9/16
    Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
    Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
    Mobile Phone Access iOS; Android
    Interoperability ONVIF 23.06 (Profile T; Profile S; Profile G); CGI; SDK
    Browser Chrome; IE; Safari; Edge; Firefox
    General Alarm Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
    Anomaly Alarm Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
    Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
    Alarm Linkage Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
    Vehicle Recognition 1. AI by Camera:Yes 2. AI by Recorder: No
    Power Supply 12 VDC, 4 A
    Power Consumption Total output of NVR is <10 W(without HDD)
    Net Weight 1.49 kg (3.28 lb)
    Gross Weight 2.77 kg (6.11 lb)
    Product Dimensions 375.0 mm × 282.9 mm × 53.0 mm (14.76" ×11.14" × 2.09") (W × D × H)
    Packaging Dimensions 433.0 mm × 141.0 mm × 366.0 mm (17.05" × 5.55" × 14.41") (W × D × H)
    Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
    Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
    Operating Humidity 10%–93% (RH), non-condensing
    Storage Humidity 30%–85% (RH), non-condensing
    Operating Altitude ≤5,000 m (16,404.20 ft)
    Installation Rack or desktop
    Certifications CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
    Vehicle License Plate Comparison 1. ANPR by Camera+ License Plate Comparison by Recorder 2. Functions: Deploys multiple vehicle license plate databases, alarm prompts in client when plate number is consistent with the license plate databases (blocklist/allowlist); Support record linkage, snapshot (panorama), local external alarm output, IPC external alarm output, access controller, audio, buzzer, log, preset, and email
    License Plate Database Management 1. Import method: Import a single license plate after exporting the Excel template to fill in the license plate information 2. License plate information: Country/region, plate number, name, vehicle logo, driver's license, vehicle color, plate color, mobile phone, email, and address
    IVS (Perimeter Protection) 1. AI by Camera: Yes 2. AI by Recorder: No Supports setting up to 10 intrusion and tripwire rules; record linkage, snapshot (panoramic), local external alarm output, IPC external alarm output, access controller, audio, buzzer, and log
    Perimeter Performance of AI by Camera (Number of Channels) 6 channels
    Live (Perimeter Protection) 1. Rule box and object detection : Configure rule box and object detection box 2. Intelligent panel: Displays objects categories (human or vehicle), event type, time, and cutout 3. Statistics: calculates the total number of people in Peopletotal and vehicles in Vehicle. It also displays up to 50 snapshot records, supports recording playback (10 seconds before/after the event), and exporting a single record
    Playback (Perimeter Protection) 1. Search conditions: Search for image by channel, time, event type, and target type 2. Function: Supports recording playback (10 seconds before/after the event), and exporting search results to Excel, video and image (cutout and panoramic) format 3. Snapshot database capacity: 300,000 entries
    Multi-channel Playback Up to 16 channels
    Record Mode General, motion detection; intelligent; alarm
    Backup Method USB device and network
    Playback Mode Instant playback, general playback, event playback, tag playback, smart playback
